Data acquisition and processing units
Ethernet Box
Portable AE system of data acquisition with the possibility of Ethernet 10/100 Base-T Remote Access. It is intended to be shared with any computer
Offered with A-Line PCI-1, DDM-1, DDM-2, DSMaximum number of channels:- A-Line PCI-1
- A-Line DDM-1
- A-Line DDM-2
- A-Line DS
16
32
40
16Dimensions, mm166 х 170 х 393Maximum electronic module mass, kg
- A-Line PCI-1, DS
- A-Line DDM-1, DDM-2
10
11Power supply
- voltage, V
- frequency, Hz
220 ± 5%
50 ± 1Maximum power consumption, W450Working temperatures range, °C5 ÷ 40
Ethernet Box XL
Portable AE system of data acquisition with the possibility of Ethernet 10/100 Base-T Remote Access. It is intended to be shared with any computer
Offered with A-Line PCI-1, DDM-1, DDM-2, DSMaximum number of channels:- A-Line PCI-1
- A-Line DDM-1
- A-Line DDM-2
- A-Line DS
40
64
80
32Dimensions, mm173 х 315 х 410Maximum electronic module mass, kg
- A-Line PCI-1, DS
- A-Line DDM-1, DDM-2
12,5
15Power supply
- voltage, V
- frequency, Hz220 ± 5%
50 ± 1Maximum power consumption, W550Working temperatures range, °C5 ÷ 40Portable
Compact portable AE system in the industrial computer intended for measurements in field conditions
Offered with A-Line PCI-1, DDM-1, DDM-2, DSMaximum number of channels:- A-Line PCI-1
- A-Line DDM-1
- A-Line DDM-2
- A-Line DS
24
32
40
16Dimensions, mm437 х 290 х 234Maximum electronic module mass, kg
- A-Line PCI-1, DS
- A-Line DDM-1, DDM-2
15
16Power supply
- voltage, V
- frequency, Hz
220 ± 5%
50 ± 1Maximum power consumption, W550Working temperatures range, °C5 ÷ 40Portable XL
Compact portable AE system in the industrial computer intended for measurements in field conditions
Offered with A-Line PCI-1, DDM-1, DDM-2, DSMaximum number of channels:- A-Line PCI-1
- A-Line DDM-1
- A-Line DDM-2
- A-Line DS
40
64
80
32Dimensions, mm497 х 305 х 226Maximum electronic module mass, kg
- A-Line PCI-1, DS
- A-Line DDM-1, DDM-2
16
18Power supply
- voltage, V
- frequency, Hz
220 ± 5%
50 ± 1Maximum power consumption, W1000Working temperatures range, °C5 ÷ 40 -
Data acquisition modules and preamplifiers
For A-Line PCI
PAEF-014 preamplifier with magnetic chuck
For A-Line PCI Dimensions, mm50х30х35Dimensions with connectors, mm81х30х35Mass, g120Preamplifier supply voltage, V24Gain factor, dB26Noise (for bandwidth 30 ÷ 500 kHz), μV≤5Load resistance, Ω50Bandpass flatness, dB+0,5/-3Preamplifier AEIP-01 for explosion proof
For A-Line PCI Noise (for bandwidth 25÷500 kHz), μV≤6Load resistance, Ω50Preaplifier supply voltage, V9Gain factor, dB20Ambient temperature, °C-40 ÷ +85Bandpass flatness, dB+0,5/ -3Marking of explosion protection0Ex ia IIC T4For A-Line DDM-1
Data acquisition module with magnetic chuck
For A-Line DDM-1 Dimensions, mm155х85х45Mass, g710Conditions of AE module operation:
- ambient temperature, ºС
- relative humidity at +25 °C, %
- atmospheric pressure, mm Hg
-20 ÷ + 50
≤95
460 ÷ 960Power consumption≤ 2 WIngress
protection ratingIP-65

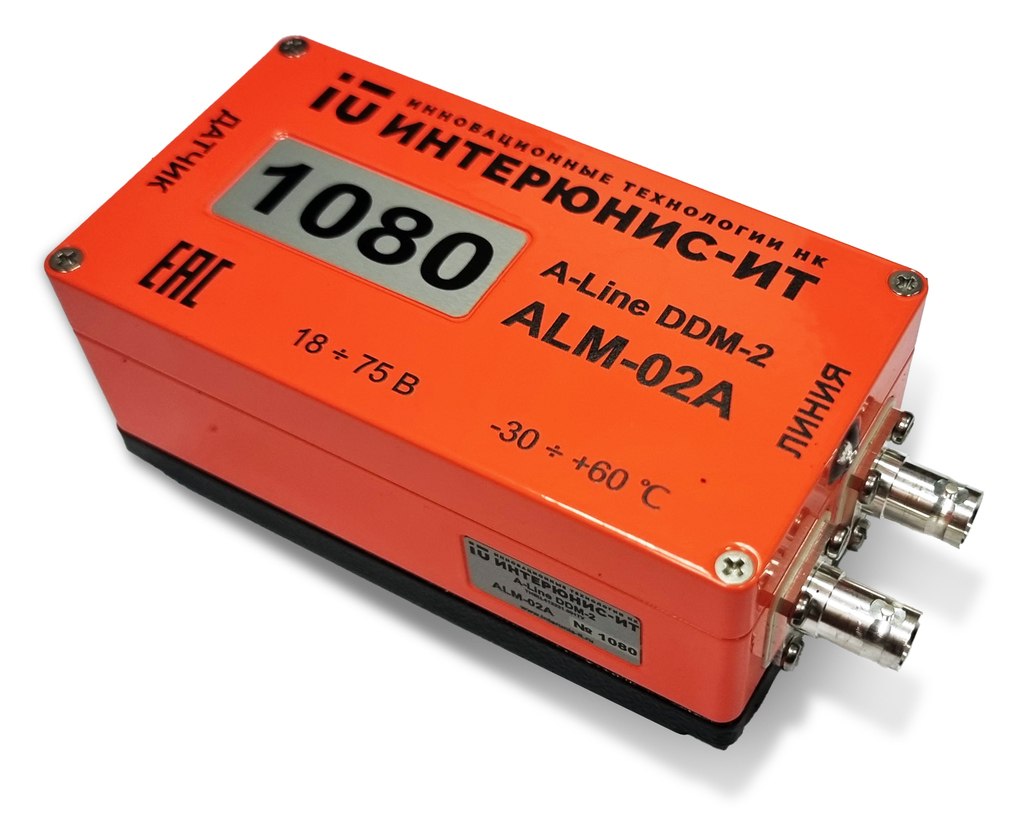

For A-Line DDM-2ALM-02 module for digital processing and transmission of AE parameters
For A-Line DDM-2 General parameters Input signal range, V:
- ALM-02A*
- ALM-02E*
±0,18
±0,1Gain, dB 36 Bandwidth, kHz 15 ÷ 650 Filters attenuation, dB/octave 20 Maximum RMS noise, μV:
- with 100 to 300 kHz filter
- with 30 to 500 kHz filter
- with 15 to 650 kHz filter
3
4
5Input resistance, kOhm 90 Connection cable:
- ALM-02A*
- ALM-02E*
BNCI-*
AM2-*Maximum connection cable length, m:
- BNCI-1 cable
- BNCI-2 cable
- AM2-* cable
150
200
30Pulser Pulse amplitude range, V:
- ALM-02A*
- ALM-02E*
10 ÷ 120
-Pulse rate, Hz:
- ALM-02A*
- ALM-02E*
1
-Parametric channels Number of internal temperature parametric channels, pcs1Maximum update frequency, Hz1ADC resolution, bit 14 Temperature range of internal temperature parametric channels, °С -40 ÷ +125 Power supply DC power supply voltage, V:
- ALM-02A*
- ALM-02E*
18 ÷ 75
3,3 ÷ 6Maximum DC power consumption, W:
- ALM-02A*
- ALM-02E*
1,8
1,5Weight and size Dimensions (L×W×H), mm:
- ALM-02A*
- ALM-02E*
155×65×50
155×65×60Weight, kg:
- ALM-02A*
- ALM-02E*
0,6
1Operation conditions Measurement conditions:
- temperature range, °С-30 ÷ +60ALMB splitters
For A-Line DDM-2 General parameters Number of connecting ALM modules, pcs:
- ALMB-*-1
- ALMB-*-2
- ALMB-*-4
1
2
4DC power supply voltage, V:
- ALMB-01-*
- ALMB-02E-*
18 ÷ 75
4 ÷ 6Connection cable BNCI-* Maximum connection cable length, m:
- BNCI-1 cable
- BNCI-2 cable
150
200Power supply DC power supply voltage, V: 18 ÷ 75 Maximum DC power consumption, W:
- ALMB-01-*
- ALMB-02E-*
2
5Weight and size Dimensions (L×W×H), mm:
- ALMB-01-*
- ALMB-02E-*
165×120×70
260×180×110Weight, kg:
- ALMB-01-*
- ALMB-02E-*
3
5Operation conditions Measurement conditions:
- temperature range, °С-30 ÷ +60
* - for all versions -
Acoustic emission sensors
Acoustic emission sensors GT200 and GT200B*
TyperesonantSensitivity, dB ref. 1V/(m/s)>60Operating frequency, kHz180Bandwidth, kHz130 (100)* ÷ 200Capacitance, pF350 ÷ 500Insulation resistance, MΩ> 100Temperature range, ºС-55 ÷ + 120Case materialtitanium alloyBuilt-in cable length, m2 (0,5)*Weight (without cable), g15 (20)*Connector typeBNC-S58P (CP-50-74ФВ)2РМ14КПН4Г1В1*Acoustic emission sensors GT205 and GT205В*
Typelow-frequencySensitivity, dB ref. 1V/(m/s)>70Operating frequency, kHz50Bandwidth, kHz40 ÷ 100Capacitance, pF350 ÷ 500Insulation resistance, MΩ> 100Temperature range, ºС-55 ÷ + 120Case materialtitanium alloyBuilt-in cable length, m2 (0,5)*Weight (without cable), g45Connector typeBNC-S58P (CP-50-74ФВ)2РМ14КПН4Г1В1*Acoustic emission sensors GT300
TypebroadbandSensitivity, dB ref. 1V/(m/s)>50Operating frequency, kHz280Bandwidth, kHz100 ÷ 800Capacitance, pF400 ÷ 500Insulation resistance, MΩ> 100Temperature range, ºС-55 ÷ + 120Case materialtitanium alloyBuilt-in cable length, m2Weight (without cable), g15Connector typeBNC-S58P (CP-50-74ФВ)Acoustic emission sensors SR190 and SR190Ex*
TyperesonantSensitivity, dB ref. 1V/(m/s)>60Operating frequency, kHz180Bandwidth, kHz150 ÷ 200Capacitance, pF400 ÷ 500Temperature range, ºС-50 ÷ + 100Case materialstainless steelDimensions (without cable), mmØ17х17,5Weight (without cable), g24Connector typeSMACable typeSMA→BNCSMA→ Weipu SF1210/P3 *Acoustic emission sensors SNK-15
Type bandpass Wall thicknesses of the tested object, mm 9 ÷ 26 Bandwidth, kHz 30 ÷ 150 Sensitivity, V/m >400·106 Temperature range, ºС - 30 ÷ + 80 Dimensions (without cable), mm Ø22,5х24 Connector type SMA Cable type SMA→BNC** Built-in cable length, mm 350*** Acoustic emission sensors SNK-20P
TyperesonantSensitivity, V/m>200·106Bandwidth, kHz30 ÷ 150Capacitance, pF400 ÷ 500Temperature range, ºС-30 ÷ + 80Built-in cable length, mm350***Dimensions (without cable), mmØ20х24Connector type2РМТ14КПЭ4Г1В1В*explosion-proof
**by order: FME, Lemo, MCX, MMCX, SMA, UHF;
***by order: 100÷1000 mm -
Additional components
Preamplifier connection cable (on the reel) for A-Line 32D (PCI-8E)
for A-Line 32D (PCI-8E) Cable typeРК 50-2-16 /coaxial/Central conductor corecopper, tin-plated multiwireInsulationpolyethyleneOuter diameter, mm3.2Wave impedance, Ohm50Connection typeBNCTemperature range, ºС- 30 ÷ + 80BNC splitter cable for A-Line 32D (PCI-8E)
for A-Line 32D (PCI-8E) Cabel typeRG-174 A/UCentral conductor corecopper, tin-plated multiwireInsulationpolyethyleneOuter diameter, mm2,8Wave impedance, Ohm50Connection type with the system unitDHS-26FMaxnumber of channels for one splitter8Temperature range, ºС- 40 ÷+ 75Data cable (on the reel) for Lel/A-Line 32D (DDM)
for Lel/A-Line 32D (DDM) Cable typeshielded twisted pair (7 pairs)InsulationPVCCable sheathPVCСечение проводника, AWG24Wave impedance, Ohm75Connection type at the module inputРС-19АТВConnection type at the module outputРС-10АТВTemperature range, ºС- 20 ÷+ 50Data cable adapter for Lel/A-Line 32D (DDM)
for Lel/A-Line 32D (DDM) Connection type 1РС-10АТВConnection type 2РС-19АТВCasealluminium alloySplitter cable «AM2M-1»

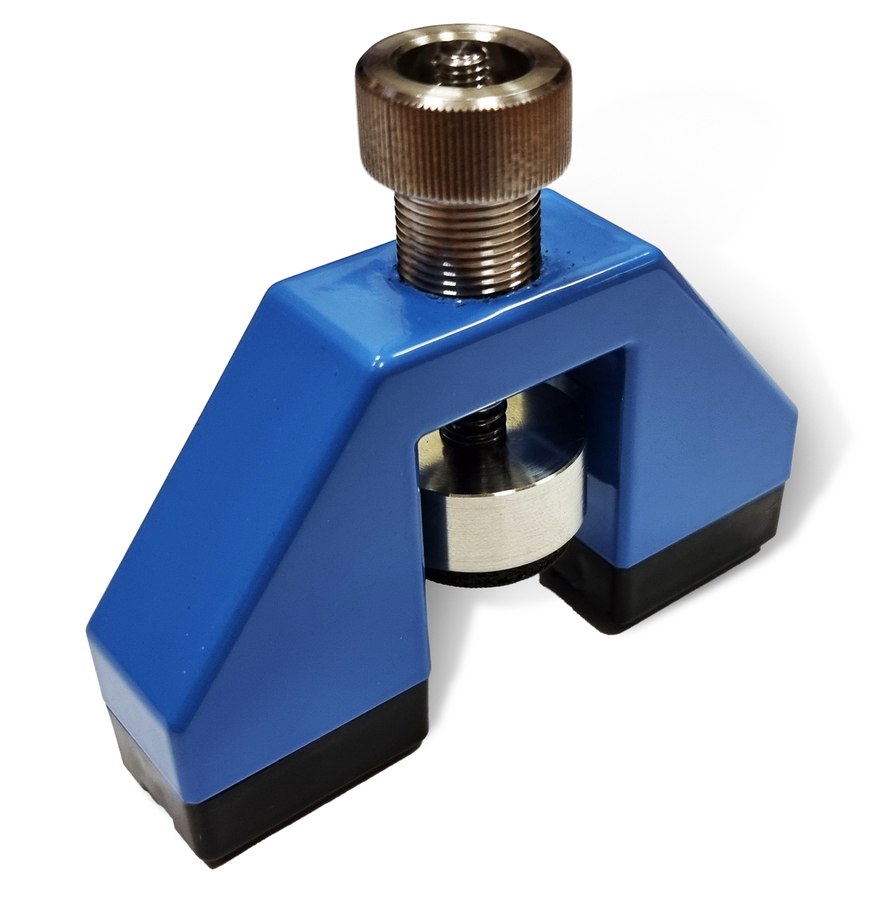

for A-Line DDM-2 AE sensor magnetic holder for A-Line 32D (PCI-8E) and Lel/A-Line 32D (DDM)
for A-Line 32D (PCI-8E) and Lel/A-Line 32D (DDM) Clamping Force, N20Dimensions, mm84 х 20 х 70Weight, g200Line terminator for Lel/A-Line 32D (DDM)
for Lel/A-Line 32D (DDM) Line terminator is the counterpart to block connector (in the AE module) РС-10 ТВ with the special disoldering.Line terminator «AM2T-1»
for A-Line DDM-2 Case
for A-Line PCI-1, DDM-1/2, DS-1 and UNISCOPE
|
Ethernet Box Portable AE system of data acquisition with the possibility of Ethernet 10/100 Base-T Remote Access. It is intended to be shared with any computer |
|
|
Offered with A-Line PCI-1, DDM-1, DDM-2, DS |
|
Maximum number of channels:
- A-Line PCI-1 - A-Line DDM-1 - A-Line DDM-2 - A-Line DS |
16 32 40 16 |
|
Dimensions, mm |
166 х 170 х 393 |
|
Maximum electronic module mass, kg - A-Line PCI-1, DS - A-Line DDM-1, DDM-2 |
10 11 |
|
Power supply - voltage, V - frequency, Hz |
220 ± 5% 50 ± 1 |
|
Maximum power consumption, W |
450 |
|
Working temperatures range, °C |
5 ÷ 40 |
|
Ethernet Box XL Portable AE system of data acquisition with the possibility of Ethernet 10/100 Base-T Remote Access. It is intended to be shared with any computer |
|
|
|
Offered with A-Line PCI-1, DDM-1, DDM-2, DS |
|
Maximum number of channels:
- A-Line PCI-1 - A-Line DDM-1 - A-Line DDM-2 - A-Line DS |
40 64 80 32 |
|
Dimensions, mm |
173 х 315 х 410 |
|
Maximum electronic module mass, kg - A-Line PCI-1, DS - A-Line DDM-1, DDM-2 |
12,5 15 |
|
Power supply - voltage, V - frequency, Hz |
220 ± 5% 50 ± 1 |
|
Maximum power consumption, W |
550 |
|
Working temperatures range, °C |
5 ÷ 40 |
|
Portable Compact portable AE system in the industrial computer intended for measurements in field conditions |
|
|
|
Offered with A-Line PCI-1, DDM-1, DDM-2, DS |
|
Maximum number of channels:
- A-Line PCI-1 - A-Line DDM-1 - A-Line DDM-2 - A-Line DS |
24 32 40 16 |
|
Dimensions, mm |
437 х 290 х 234 |
|
Maximum electronic module mass, kg - A-Line PCI-1, DS - A-Line DDM-1, DDM-2 |
15 16 |
|
Power supply - voltage, V - frequency, Hz |
220 ± 5% 50 ± 1 |
|
Maximum power consumption, W |
550 |
|
Working temperatures range, °C |
5 ÷ 40 |
|
Portable XL Compact portable AE system in the industrial computer intended for measurements in field conditions |
|
|
|
Offered with A-Line PCI-1, DDM-1, DDM-2, DS |
|
Maximum number of channels:
- A-Line PCI-1 - A-Line DDM-1 - A-Line DDM-2 - A-Line DS |
40 64 80 32 |
|
Dimensions, mm |
497 х 305 х 226 |
|
Maximum electronic module mass, kg - A-Line PCI-1, DS - A-Line DDM-1, DDM-2 |
16 18 |
|
Power supply - voltage, V - frequency, Hz |
220 ± 5% 50 ± 1 |
|
Maximum power consumption, W |
1000 |
|
Working temperatures range, °C |
5 ÷ 40 |
For A-Line PCI
| PAEF-014 preamplifier with magnetic chuck | |
|
For A-Line PCI |
|
Dimensions, mm |
50х30х35 |
|
Dimensions with connectors, mm |
81х30х35 |
|
Mass, g |
120 |
|
Preamplifier supply voltage, V |
24 |
|
Gain factor, dB |
26 |
|
Noise (for bandwidth 30 ÷ 500 kHz), μV |
≤5 |
|
Load resistance, Ω |
50 |
|
Bandpass flatness, dB |
+0,5/-3 |
| Preamplifier AEIP-01 for explosion proof | |
|
For A-Line PCI |
|
Noise (for bandwidth 25÷500 kHz), μV |
≤6 |
|
Load resistance, Ω |
50 |
|
Preaplifier supply voltage, V |
9 |
|
Gain factor, dB |
20 |
|
Ambient temperature, °C |
-40 ÷ +85 |
|
Bandpass flatness, dB |
+0,5/ -3 |
|
Marking of explosion protection |
0Ex ia IIC T4 |
For A-Line DDM-1
| Data acquisition module with magnetic chuck | |
|
For A-Line DDM-1 |
|
Dimensions, mm |
155х85х45 |
|
Mass, g |
710 |
|
Conditions of AE module operation: - ambient temperature, ºС - relative humidity at +25 °C, % - atmospheric pressure, mm Hg |
-20 ÷ + 50 ≤95 460 ÷ 960 |
|
Power consumption |
≤ 2 W |
|
Ingress protection rating |
IP-65 |
For A-Line DDM-2
| ALM-02 module for digital processing and transmission of AE parameters | |
|
For A-Line DDM-2 |
| General parameters | |
| Input signal range, V: - ALM-02A* - ALM-02E* |
±0,18 ±0,1 |
| Gain, dB | 36 |
| Bandwidth, kHz | 15 ÷ 650 |
| Filters attenuation, dB/octave | 20 |
| Maximum RMS noise, μV: - with 100 to 300 kHz filter - with 30 to 500 kHz filter - with 15 to 650 kHz filter |
3 4 5 |
| Input resistance, kOhm | 90 |
| Connection cable: - ALM-02A* - ALM-02E* |
BNCI-* AM2-* |
| Maximum connection cable length, m: - BNCI-1 cable - BNCI-2 cable - AM2-* cable |
150 200 30 |
| Pulser | |
| Pulse amplitude range, V: - ALM-02A* - ALM-02E* |
10 ÷ 120 - |
| Pulse rate, Hz: - ALM-02A* - ALM-02E* |
1 - |
| Parametric channels | |
|
Number of internal temperature parametric channels, pcs |
1 |
|
Maximum update frequency, Hz |
1 |
| ADC resolution, bit | 14 |
| Temperature range of internal temperature parametric channels, °С | -40 ÷ +125 |
| Power supply | |
| DC power supply voltage, V: - ALM-02A* - ALM-02E* |
18 ÷ 75 3,3 ÷ 6 |
| Maximum DC power consumption, W: - ALM-02A* - ALM-02E* |
1,8 1,5 |
| Weight and size | |
| Dimensions (L×W×H), mm: - ALM-02A* - ALM-02E* |
155×65×50 155×65×60 |
| Weight, kg: - ALM-02A* - ALM-02E* |
0,6 1 |
| Operation conditions | |
|
Measurement conditions: - temperature range, °С |
-30 ÷ +60 |
| ALMB splitters | |
|
For A-Line DDM-2 |
| General parameters | |
| Number of connecting ALM modules, pcs: - ALMB-*-1 - ALMB-*-2 - ALMB-*-4 |
1 2 4 |
| DC power supply voltage, V: - ALMB-01-* - ALMB-02E-* |
18 ÷ 75 4 ÷ 6 |
| Connection cable | BNCI-* |
| Maximum connection cable length, m: - BNCI-1 cable - BNCI-2 cable |
150 200 |
| Power supply | |
| DC power supply voltage, V: | 18 ÷ 75 |
| Maximum DC power consumption, W: - ALMB-01-* - ALMB-02E-* |
2 5 |
| Weight and size | |
| Dimensions (L×W×H), mm: - ALMB-01-* - ALMB-02E-* |
165×120×70 260×180×110 |
| Weight, kg: - ALMB-01-* - ALMB-02E-* |
3 5 |
| Operation conditions | |
| Measurement conditions: - temperature range, °С |
-30 ÷ +60 |
* - for all versions
| Acoustic emission sensors GT200 and GT200B* | |
|
|
|
Type |
resonant |
|
Sensitivity, dB ref. 1V/(m/s) |
>60 |
|
Operating frequency, kHz |
180 |
|
Bandwidth, kHz |
130 (100)* ÷ 200 |
|
Capacitance, pF |
350 ÷ 500 |
|
Insulation resistance, MΩ |
> 100 |
|
Temperature range, ºС |
-55 ÷ + 120 |
|
Case material |
titanium alloy |
|
Built-in cable length, m |
2 (0,5)* |
|
Weight (without cable), g |
15 (20)* |
|
Connector type |
BNC-S58P (CP-50-74ФВ)
2РМ14КПН4Г1В1* |
| Acoustic emission sensors GT205 and GT205В* | |
|
|
|
Type |
low-frequency |
|
Sensitivity, dB ref. 1V/(m/s) |
>70 |
|
Operating frequency, kHz |
50 |
|
Bandwidth, kHz |
40 ÷ 100 |
|
Capacitance, pF |
350 ÷ 500 |
|
Insulation resistance, MΩ |
> 100 |
|
Temperature range, ºС |
-55 ÷ + 120 |
|
Case material |
titanium alloy |
|
Built-in cable length, m |
2 (0,5)* |
|
Weight (without cable), g |
45 |
|
Connector type |
BNC-S58P (CP-50-74ФВ)
2РМ14КПН4Г1В1* |
| Acoustic emission sensors GT300 | |
|
|
|
Type |
broadband |
|
Sensitivity, dB ref. 1V/(m/s) |
>50 |
|
Operating frequency, kHz |
280 |
|
Bandwidth, kHz |
100 ÷ 800 |
|
Capacitance, pF |
400 ÷ 500 |
|
Insulation resistance, MΩ |
> 100 |
|
Temperature range, ºС |
-55 ÷ + 120 |
|
Case material |
titanium alloy |
|
Built-in cable length, m |
2 |
|
Weight (without cable), g |
15 |
|
Connector type |
BNC-S58P (CP-50-74ФВ) |
| Acoustic emission sensors SR190 and SR190Ex* | |
|
|
|
Type |
resonant |
|
Sensitivity, dB ref. 1V/(m/s) |
>60 |
|
Operating frequency, kHz |
180 |
|
Bandwidth, kHz |
150 ÷ 200 |
|
Capacitance, pF |
400 ÷ 500 |
|
Temperature range, ºС |
-50 ÷ + 100 |
|
Case material |
stainless steel |
|
Dimensions (without cable), mm |
Ø17х17,5 |
|
Weight (without cable), g |
24 |
|
Connector type |
SMA |
|
Cable type |
SMA→BNC
SMA→ Weipu SF1210/P3 * |
| Acoustic emission sensors SNK-15 | |
|
|
| Type | bandpass |
| Wall thicknesses of the tested object, mm | 9 ÷ 26 |
| Bandwidth, kHz | 30 ÷ 150 |
| Sensitivity, V/m | >400·106 |
| Temperature range, ºС | - 30 ÷ + 80 |
| Dimensions (without cable), mm | Ø22,5х24 |
| Connector type | SMA |
| Cable type | SMA→BNC** |
| Built-in cable length, mm | 350*** |
| Acoustic emission sensors SNK-20P | |
|
|
|
Type |
resonant |
|
Sensitivity, V/m |
>200·106 |
|
Bandwidth, kHz |
30 ÷ 150 |
|
Capacitance, pF |
400 ÷ 500 |
|
Temperature range, ºС |
-30 ÷ + 80 |
|
Built-in cable length, mm |
350*** |
|
Dimensions (without cable), mm |
Ø20х24 |
|
Connector type |
2РМТ14КПЭ4Г1В1В |
*explosion-proof
**by order: FME, Lemo, MCX, MMCX, SMA, UHF;
***by order: 100÷1000 mm
| Preamplifier connection cable (on the reel) for A-Line 32D (PCI-8E) | |
|
for A-Line 32D (PCI-8E) |
|
Cable type |
РК 50-2-16 /coaxial/ |
|
Central conductor core |
copper, tin-plated multiwire |
|
Insulation |
polyethylene |
|
Outer diameter, mm |
3.2 |
|
Wave impedance, Ohm |
50 |
|
Connection type |
BNC |
|
Temperature range, ºС |
- 30 ÷ + 80 |
| BNC splitter cable for A-Line 32D (PCI-8E) | |
|
for A-Line 32D (PCI-8E) |
|
Cabel type |
RG-174 A/U |
|
Central conductor core |
copper, tin-plated multiwire |
|
Insulation |
polyethylene |
|
Outer diameter, mm |
2,8 |
|
Wave impedance, Ohm |
50 |
|
Connection type with the system unit |
DHS-26F |
|
Maxnumber of channels for one splitter |
8 |
|
Temperature range, ºС |
- 40 ÷+ 75 |
| Data cable (on the reel) for Lel/A-Line 32D (DDM) | |
|
for Lel/A-Line 32D (DDM) |
|
Cable type |
shielded twisted pair (7 pairs) |
|
Insulation |
PVC |
|
Cable sheath |
PVC |
|
Сечение проводника, AWG |
24 |
|
Wave impedance, Ohm |
75 |
|
Connection type at the module input |
РС-19АТВ |
|
Connection type at the module output |
РС-10АТВ |
|
Temperature range, ºС |
- 20 ÷+ 50 |
| Data cable adapter for Lel/A-Line 32D (DDM) | |
|
for Lel/A-Line 32D (DDM) |
|
Connection type 1 |
РС-10АТВ |
|
Connection type 2 |
РС-19АТВ |
|
Case |
alluminium alloy |
| Splitter cable «AM2M-1» | |
|
for A-Line DDM-2 |
| AE sensor magnetic holder for A-Line 32D (PCI-8E) and Lel/A-Line 32D (DDM) | |
|
for A-Line 32D (PCI-8E) and Lel/A-Line 32D (DDM) |
|
Clamping Force, N |
20 |
|
Dimensions, mm |
84 х 20 х 70 |
|
Weight, g |
200 |
| Line terminator for Lel/A-Line 32D (DDM) | |
|
for Lel/A-Line 32D (DDM) |
|
Line terminator is the counterpart to block connector (in the AE module) РС-10 ТВ with the special disoldering. |
|
| Line terminator «AM2T-1» | |
|
for A-Line DDM-2 |
| Case | |
|
for A-Line PCI-1, DDM-1/2, DS-1 and UNISCOPE |
